Generac PWRcell 2
Generac PWRcell 2 is the next-generation home energy storage system, powerful, smart and ready to provide whole home backup when it’s needed most.
Key Features Of Generac PWRcell 2
Powerful
Power the whole home during an outage, including multiple air conditioners, without a soft starter.
Uninterrupted switchover with a smart disconnect switch.
Expandable up to 19.2 kW AC-coupled PV
23 kW continuous power
72 kWh battery storage
Resilient
Provides 33% longer back up power than industry leaders with up to 18 kWh in a single cabinet.
Fewer single points of failure with AC-coupled
architecture.
Extended outage protection when paired with a Generac generator up to 26 kW.
Smart
Integration with an ecobee smart thermostat provides an easily accessible in-home display for outage details and battery status.
Automatic temperature adjustments with ecobee optimize energy consumption and extend backup duration.
Real-time monitoring from anywhere via the
PWRview app.

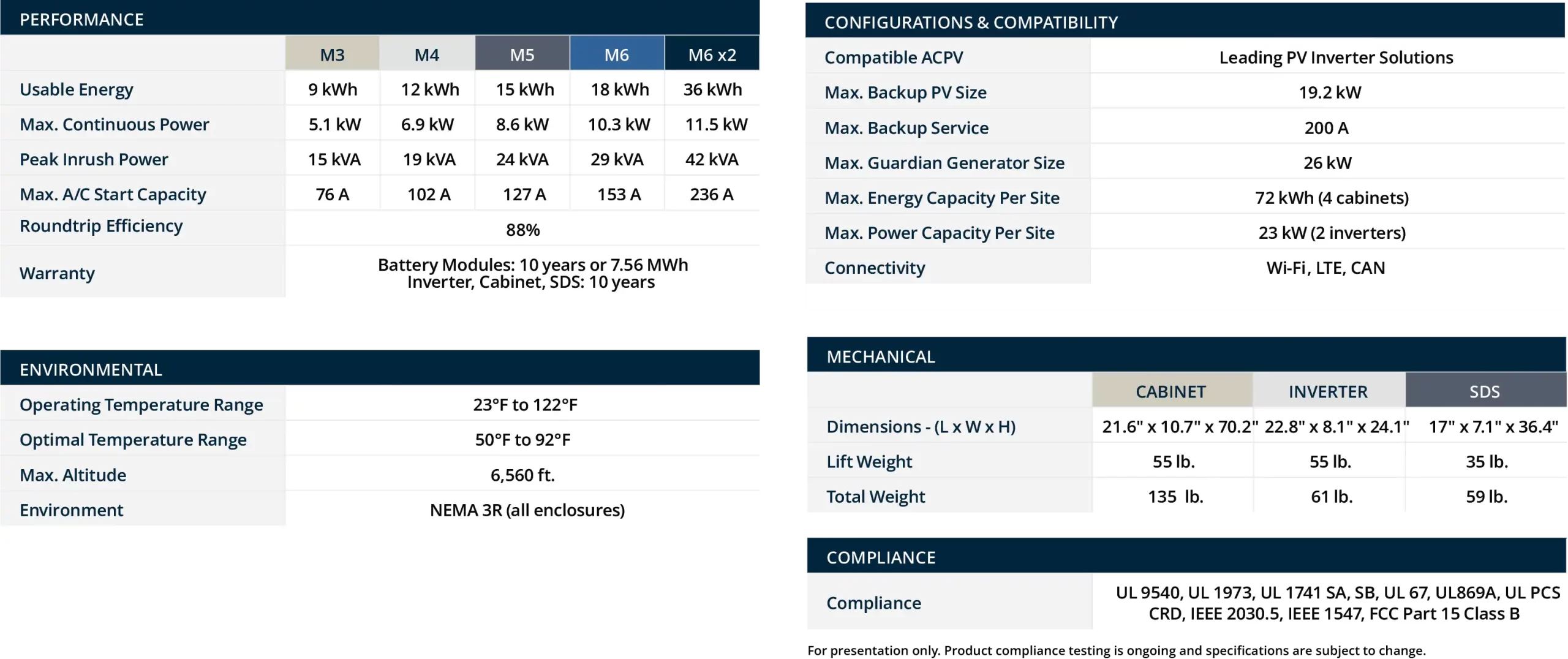

Generac PWRcell 2 System Specifications

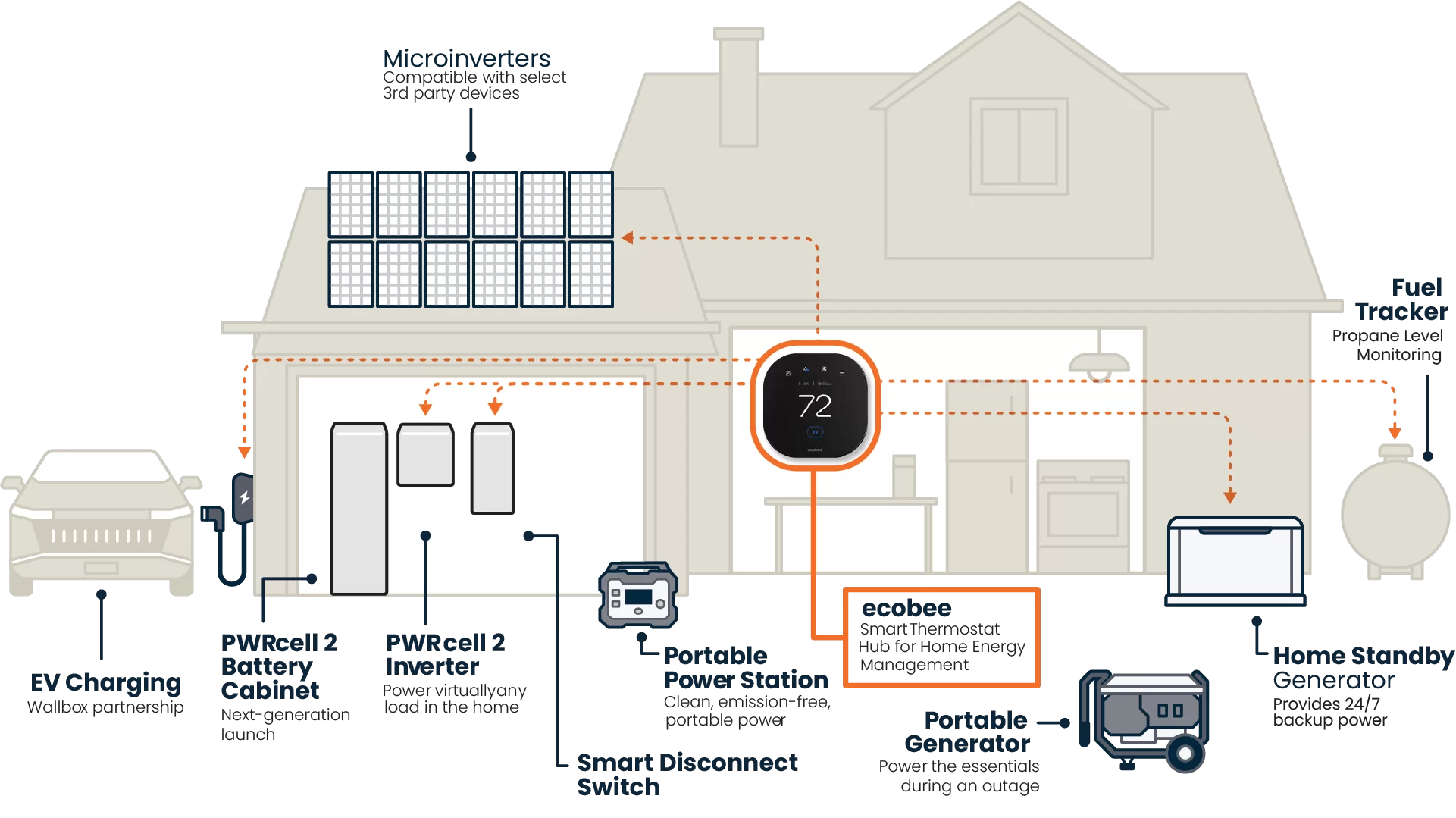

Components Of PWRcell 2 Home Energy System

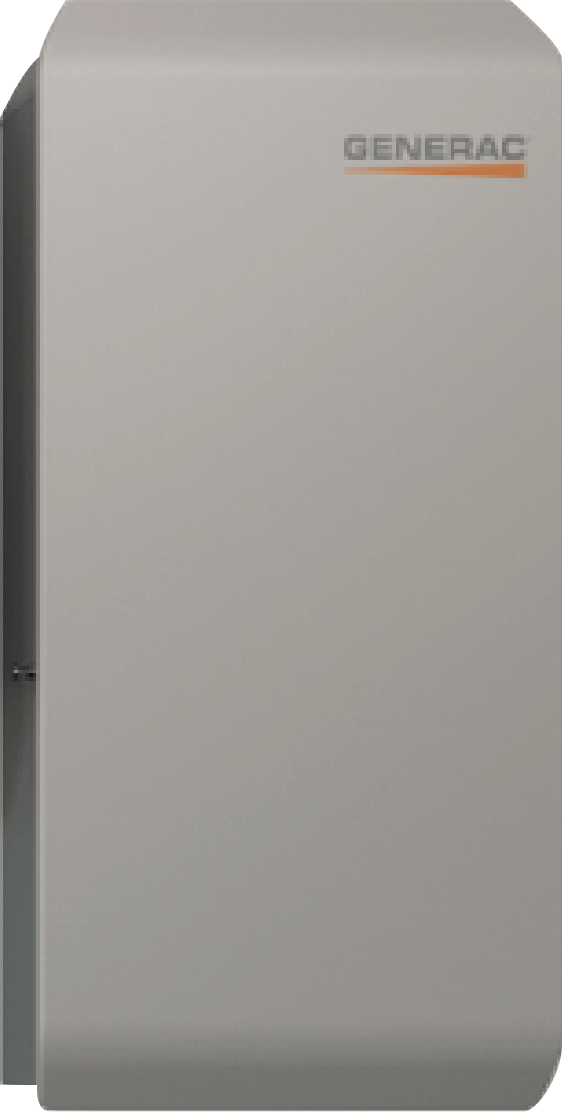

PWRcell 2 Battery Cabinet
Up to 18 kWh energy capacity per cabinet. Configurable in 3 kWh modular increments to up to 4 cabinets per site.

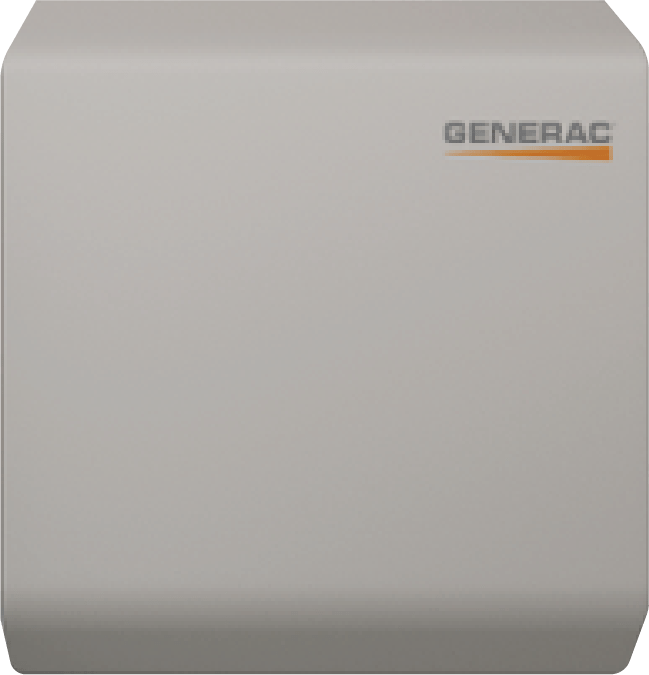

PWRcell 2 Inverte
Up to 11.5 kW max continuous power and 236 LRA when configured with two battery cabinets to start multiple air conditioners.
Smart Disconnect Switch (SDS)
Whole and partial home backup supported up to 200A. Uninterrupted transition during an outage. Revenue-grade PV production and storage monitoring. Works with Generac Guardian generators and ecobee smart thermostats.
Why Generac?
U.S.-BASED
65 YEAR HISTORY
8,000 GLOBAL EMPLOYEES
2.5 MILLION BACKUP POWER CUSTOMERS
