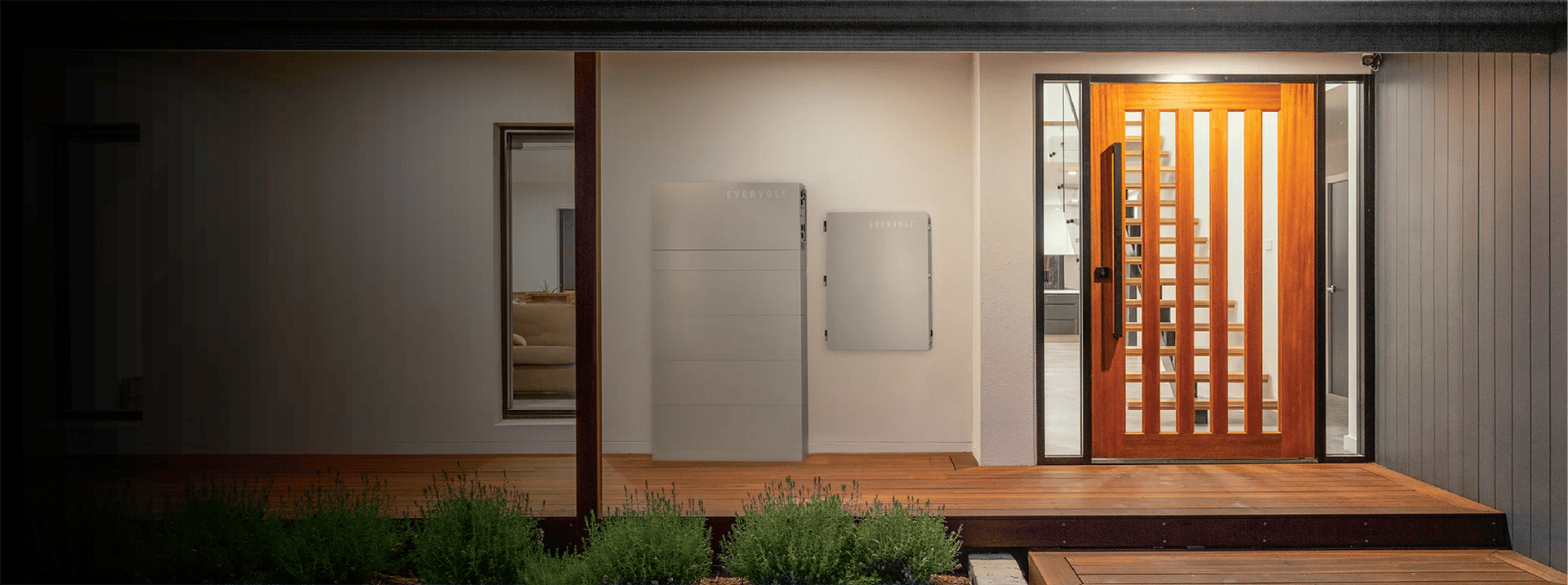

Panasonic EverVolt Gen 3 Home Battery System

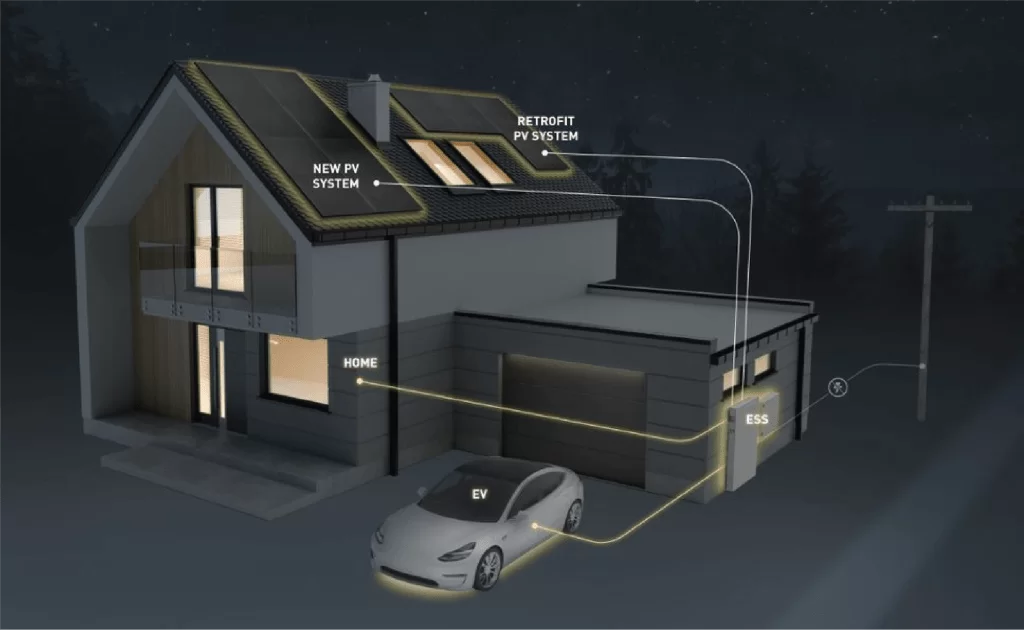

Panasonic EverVolt® Gen 3 battery system is a fully integrated residential energy storage solution you can set up by combining your solar panels, generator, utility grid, lithium iron phosphate battery, and hybrid inverter. Homeowners can connect new solar panels to it or combine it with an existing solar system.

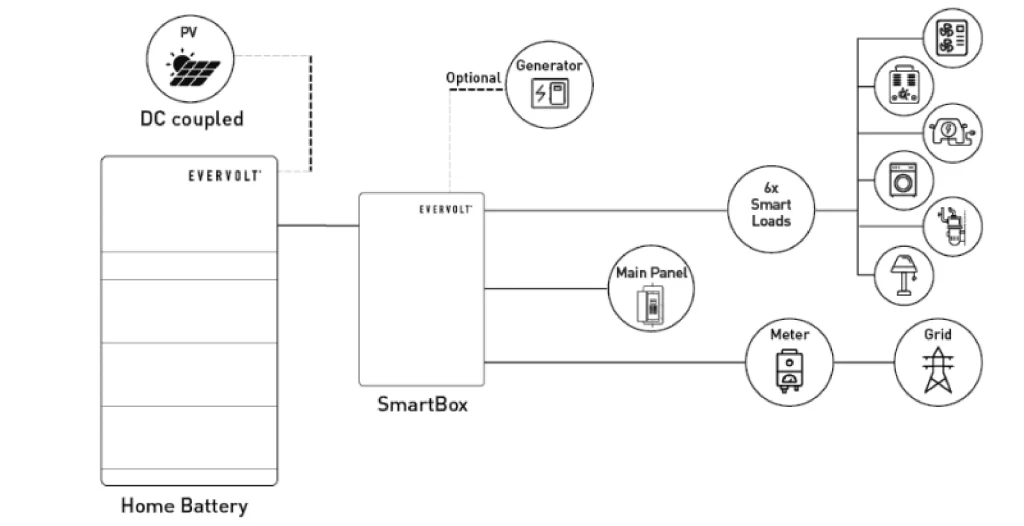

Panasonic EverVolt® Gen 3 DC-Coupled System
When solar panels directly connect to battery storage in a DC-coupled system, the energy is stored as DC power. This method is more energy-efficient because it eliminates the possibility of energy loss during the conversion of DC power to AC and does it without the use of inverters.

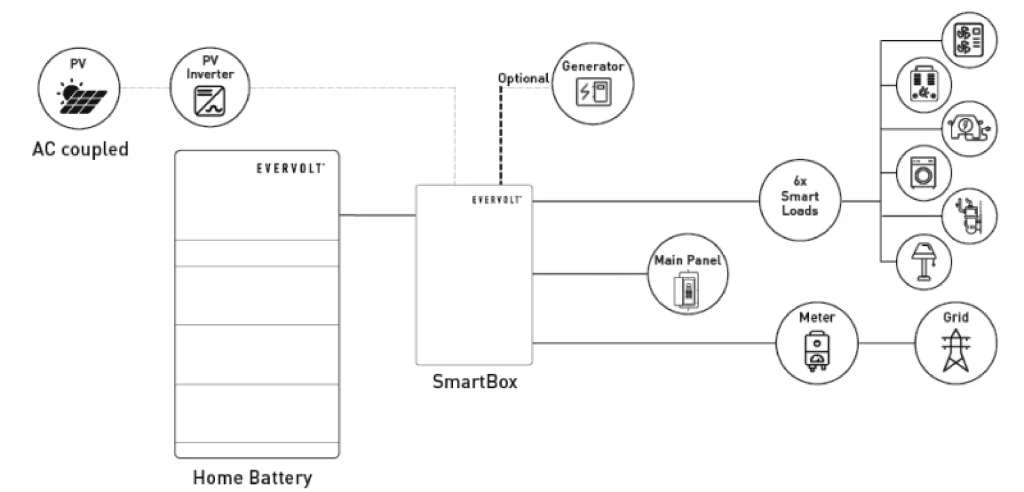

Panasonic EverVolt® Gen 3 AC-Coupled System
An AC-coupled system connects the energy storage device to an AC source, such as the grid, an additional generator, or an existing solar system. In the event of a blackout, the AC power that comes from any of these sources is then stored and used to power the household’s electrical appliances.
The Panasonic EverVolt Gen 3 Battery gives homeowners and business owners more freedom and control over how they store and use solar energy because it supports both AC and DC connections. The EverVolt guarantees their solar panels, regardless of the electrical system in place.
Key Specifications Of Panasonic EverVolt Gen 3
DC & AC Input Compatibility
Suitable for new and existing solar systems, offering versatile installation options.
Expandable Modular Design
Available in 9kWh, 13.5kWh, and 18kWh sizes, easily expandable to fit growing energy needs.
Best-in-Class Power Output
Delivers up to 7.6kW continuous backup
power with one 18kWh cabinet or 30kW with four cabinets.
Compact, Versatile Design
Sleek and compact, suitable for indoor or outdoor installation, floor or wall-mounted.
Up to 15.2kW DC Input with MPPT
Higher yields and flexible design with three, Maximum Power Point Trackers (MPPT).
Stackable Up to 72kWh
Connect up to four units for 72kWh of total storage, ensuring whole-home power backup.
12-Year Comprehensive Warranty
Complete product and labor coverage for peace of mind.
Seamless Panasonic Integration
A complete home energy system with Panasonic solar panels, all backed by one trusted brand.
Easy Installation with Rapid Shutdown
Integrated transmitter enables fast, safe PV array connections with rapid shutdown devices.
Additional Features
Up to 15.2kW Solar Capacity
Connect up to 15.2 kW of solar to three maximum power point trackers (MPPT) for maximum efficiency.
Multiple Operating Modes
Flexible operating modes: backup, self-use, time-of-use, and custom, all controllable via the mobile app.
Supports 160A AC current
Handles up to 160A AC, powering more appliances continuously without interruptions.
Smart Monitoring System
Includes cellular and WiFi monitoring with an intuitive app for tracking energy production and usage.
7.6kW Continuous Backup Power
Delivering 7.6kW of continuous backup power, ensuring your home stays powered during outages.
Generator Compatible
Compatible with generators up to 125A for long-term power outages, offering extended backup capability.
Compact & Versatile Installation
Sleek, compact design for indoor/ outdoor, wall-mounted, or floor- mounted installation, fitting seamlessly into any space.

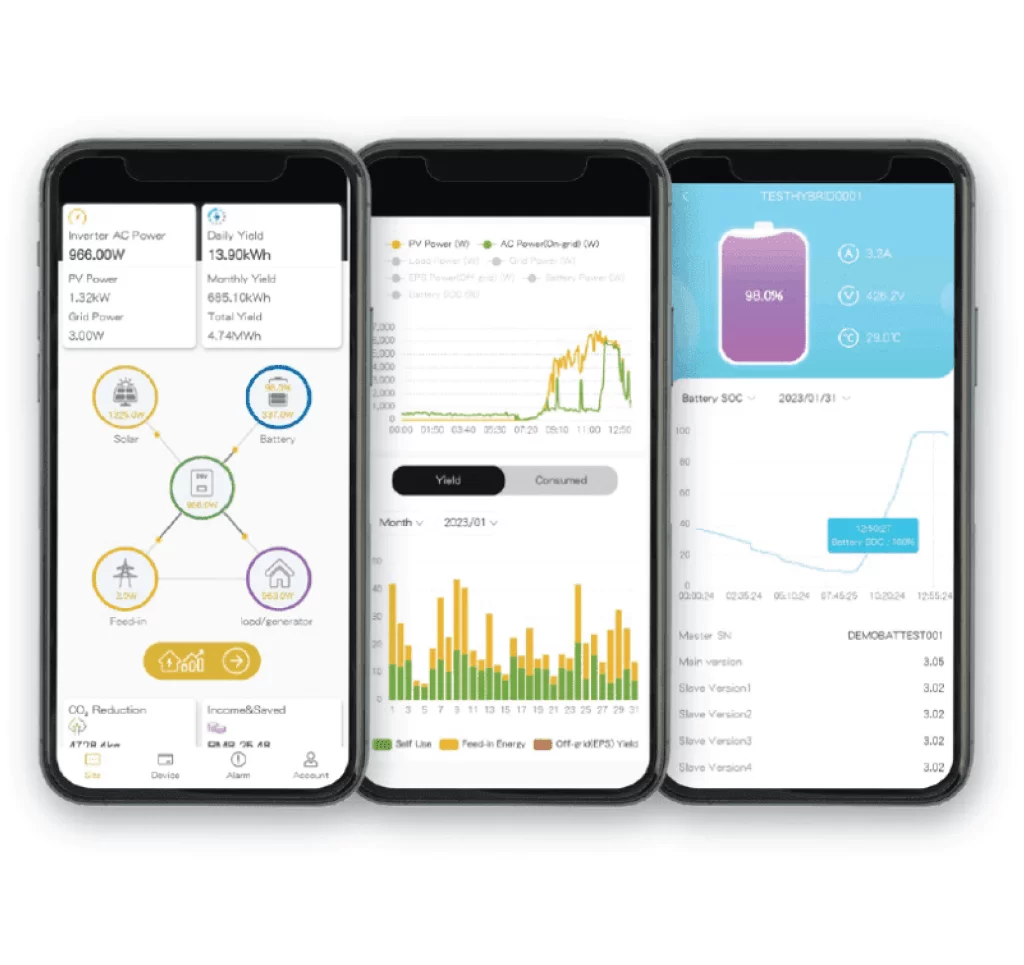

User-Friendly Mobile App
Stay in control of your energy with an easy-to-use mobile app for monitoring and customizing energy settings.

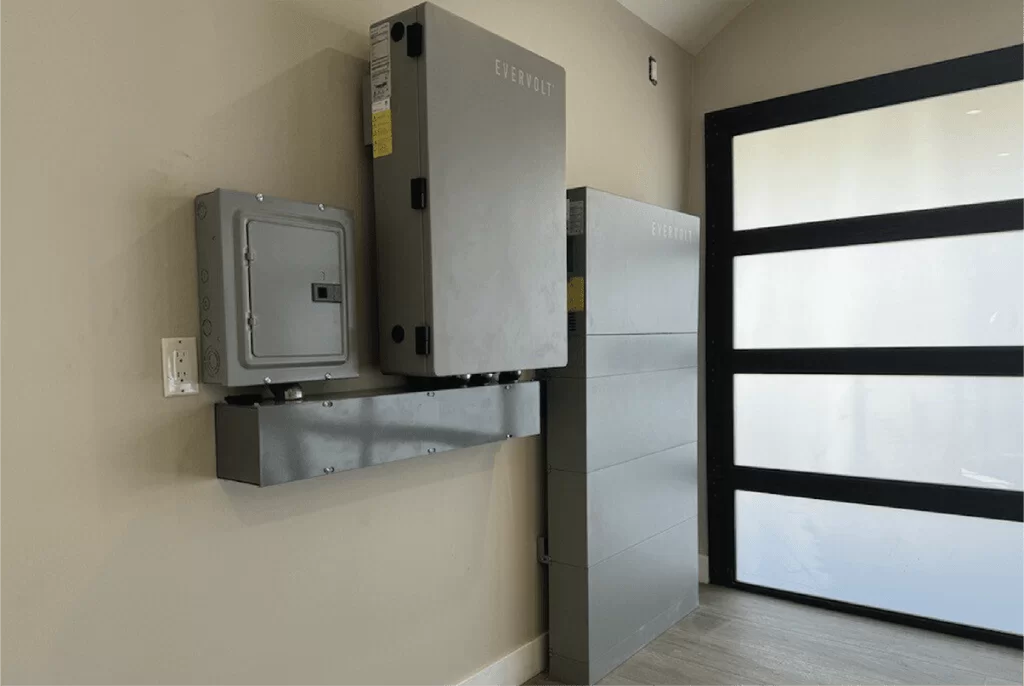

EverVolt Gen 3 With SmartBox
The EverVolt SmartBox, an energy management device that links the battery, home loads, grid electricity, and solar system all in one location, is an optional addition to the EverVolt Gen 3 Battery. During a power outage, the SmartBox manages the grid connection, enabling a smooth transfer to backup power. Additionally, it provides intelligent management for up to 6 loads to maximize energy efficiency and extend battery life.
In the solar industry, the Panasonic EverVolt Gen 3 Battery is a game changer. It is a great option for homeowners who want to get the most out of their solar energy storage system because it supports both AC and DC coupling, its intuitive design, and its intelligent energy management capabilities.
Frequently Asked Questions
What is the Panasonic EverVolt Gen 3 Battery?
What is the storage capacity of the EverVolt Gen 3?
What makes the EverVolt Gen 3 SmartBox unique?
What operating modes does the battery support?
What warranty does the EverVolt Gen 3 offer?
